Descriere:

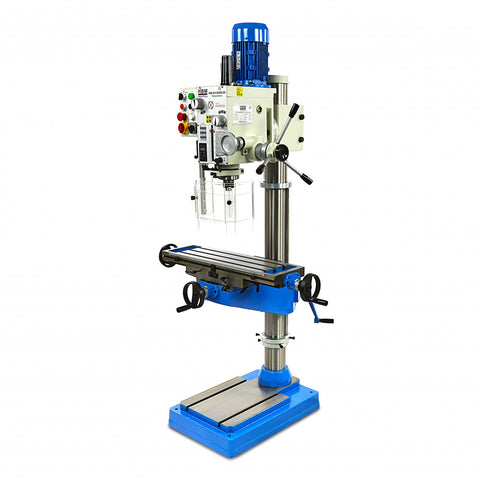

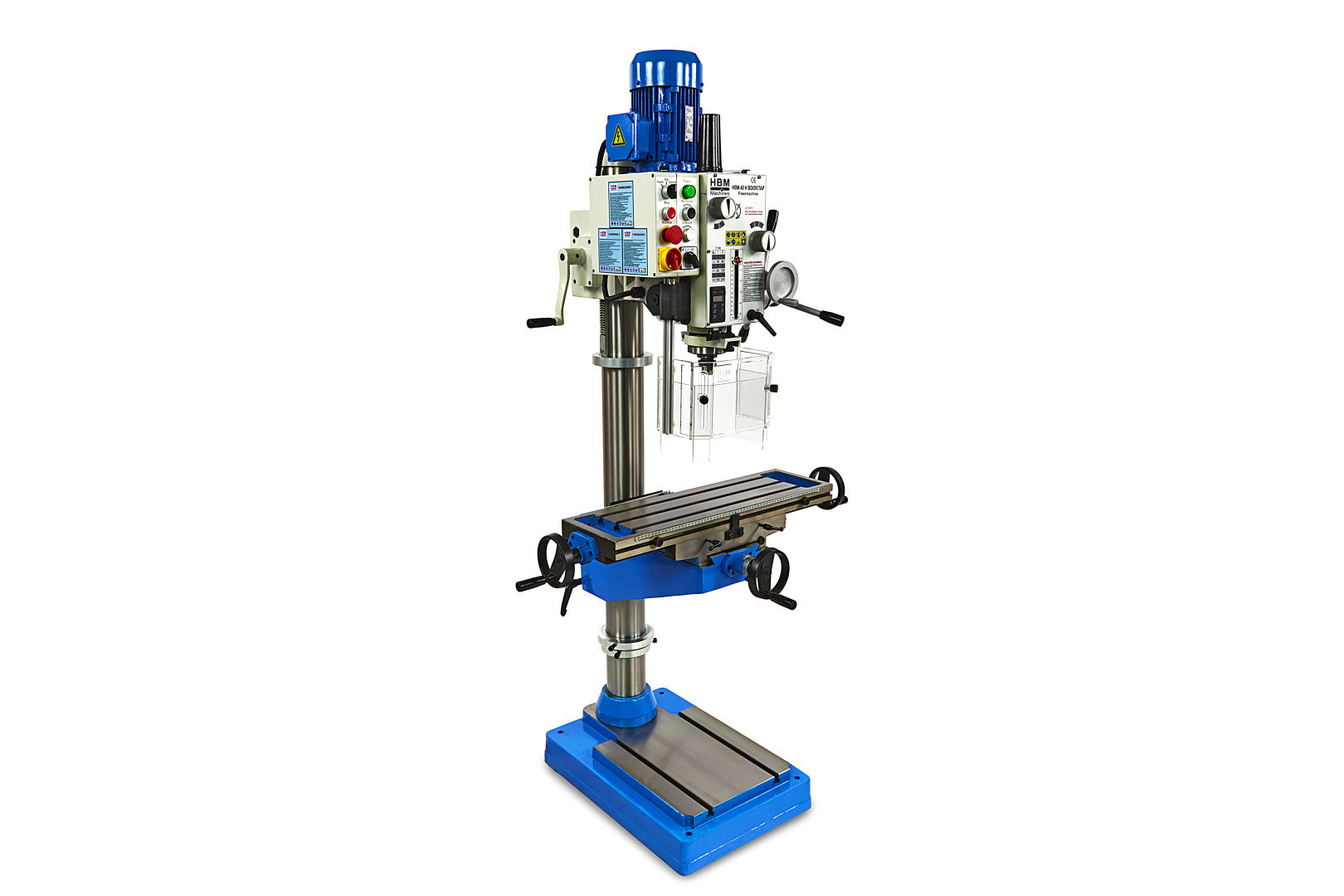

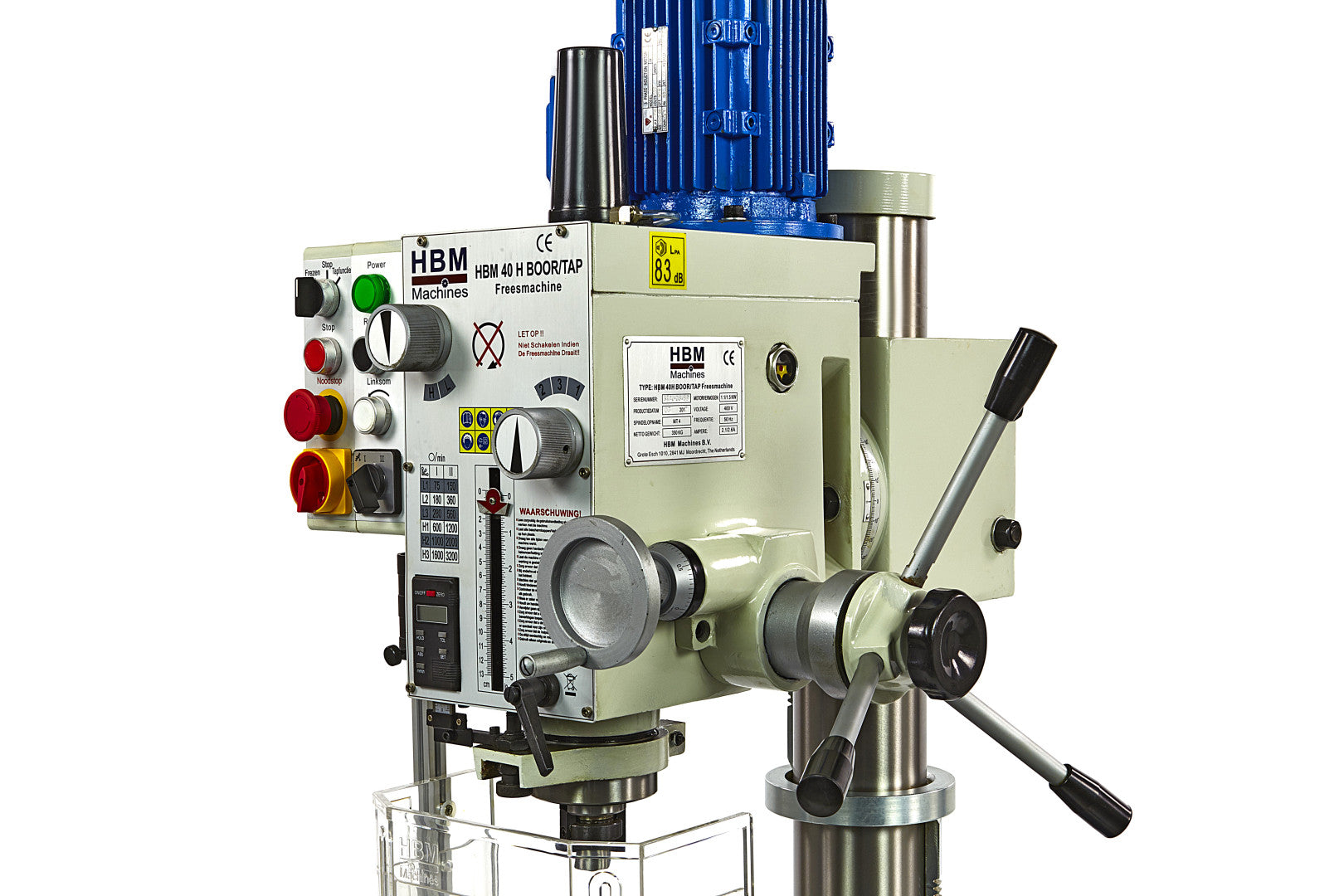

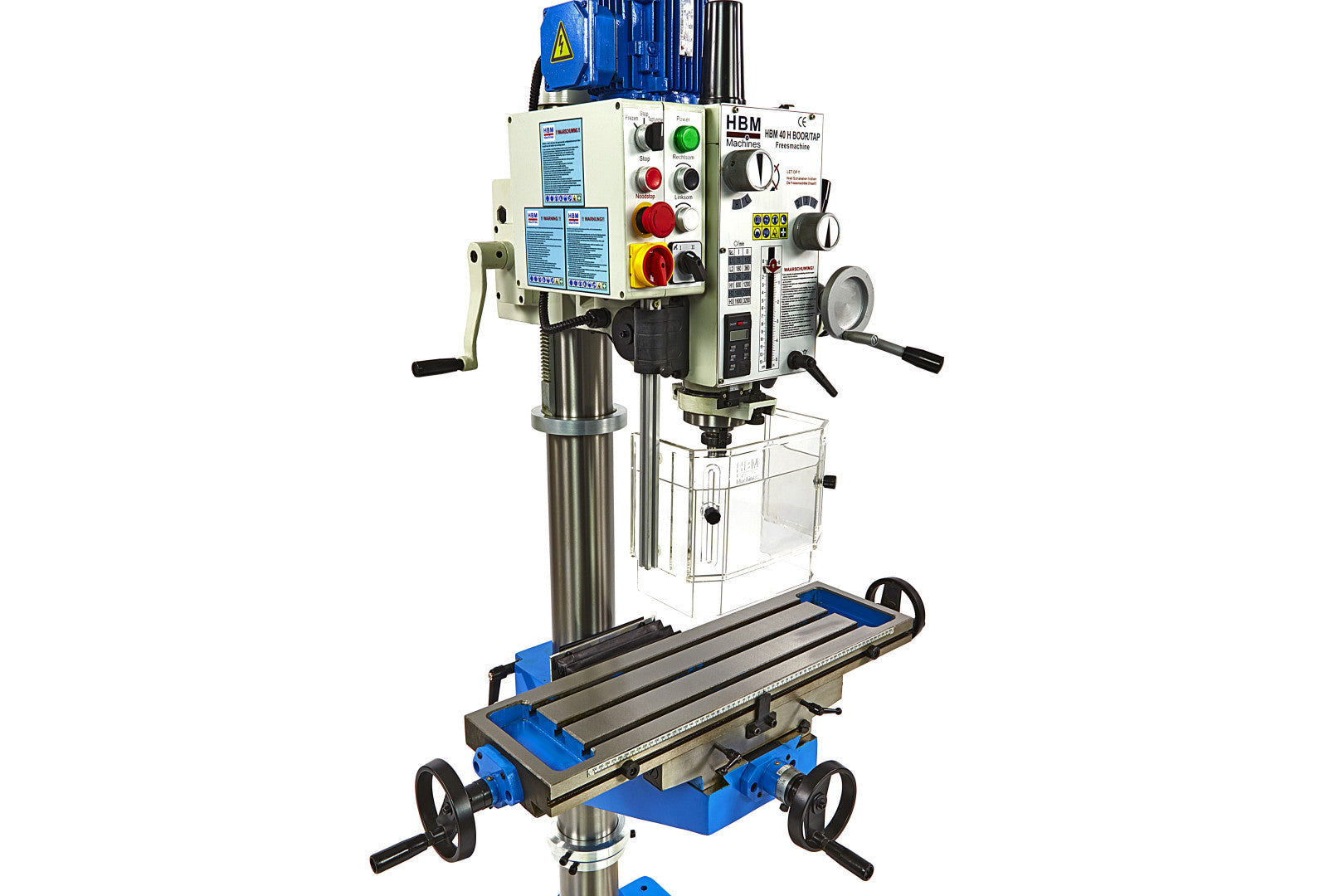

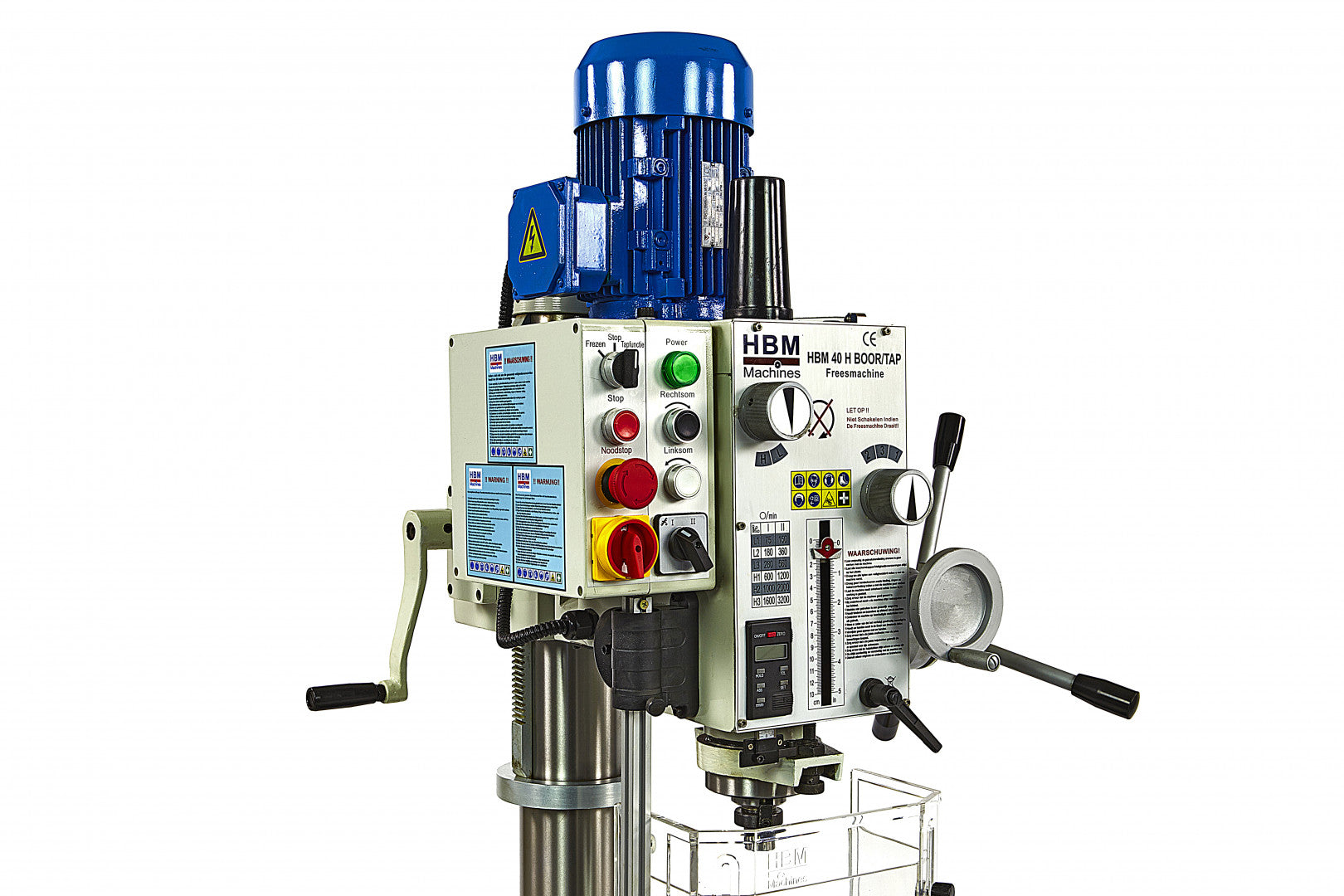

Aceasta MASINA DE FREZAT/GAURIT/FILETAT 40 H are o capacitate maxima de gaurire in otel de 40mm, iar capacitatea maxima de frezare in otel este de 32 mm. Puterea motorului este de 1100/1500W, avand 1.5/ 2 CP, motorul este cu 2 pozitii, 400V.
Date tehnice:
- capaciate maxima de gaurire in otel: 40mm
- capacitate maxima de frezare in otel: 32mm
- capacitate maxima freze: 80mm
- putere motor: 1100W/1500W – 1.5 / 2 CP. ( motor cu 2 pozitii, 400V)
- turatii: 75 – 150 – 180 – 280 – 360 – 560 – 600 – 1000 – 1200 – 1500 – 2000 – 3200 RPM
- cursa piston: 120mm
- receptie: MC 4

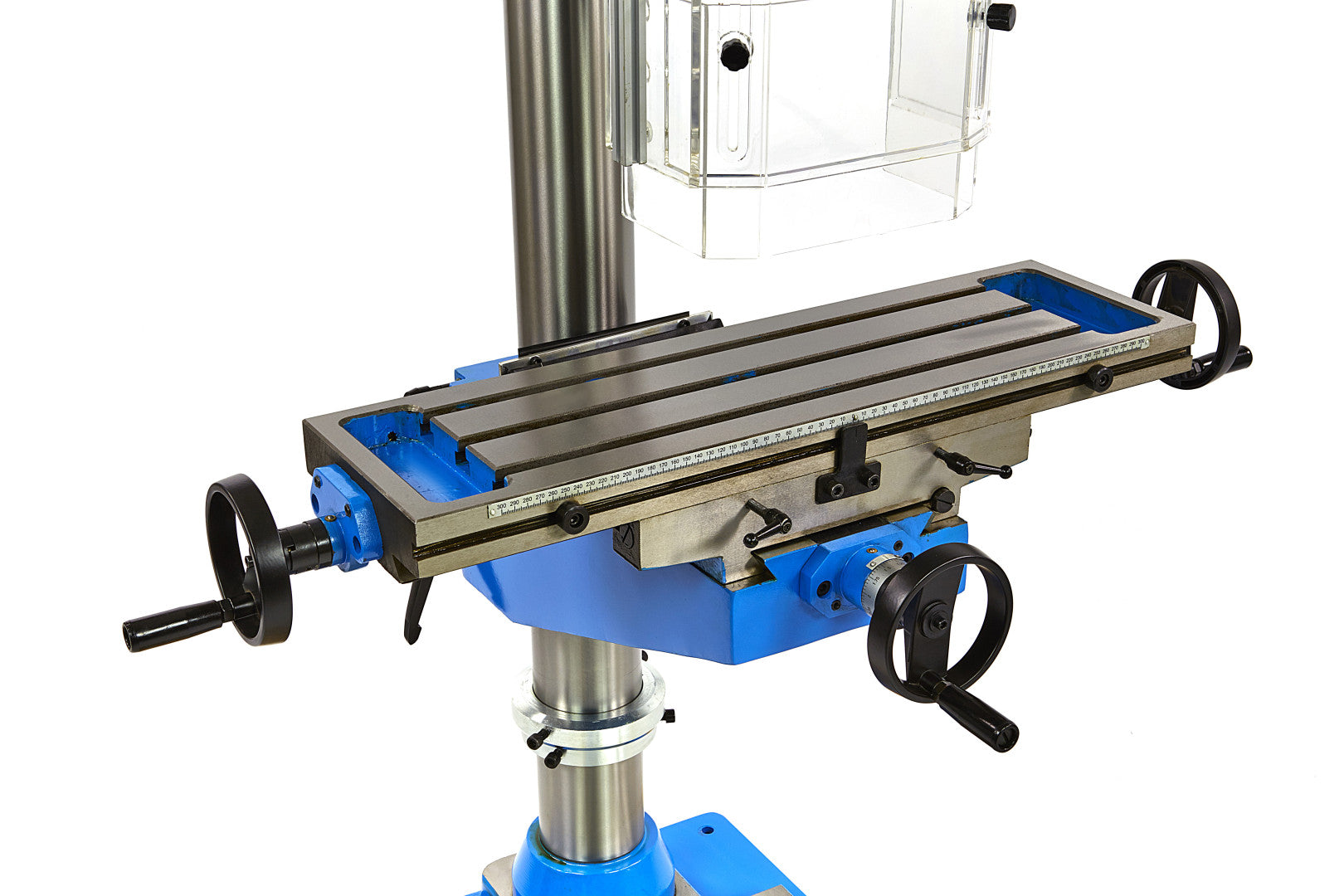

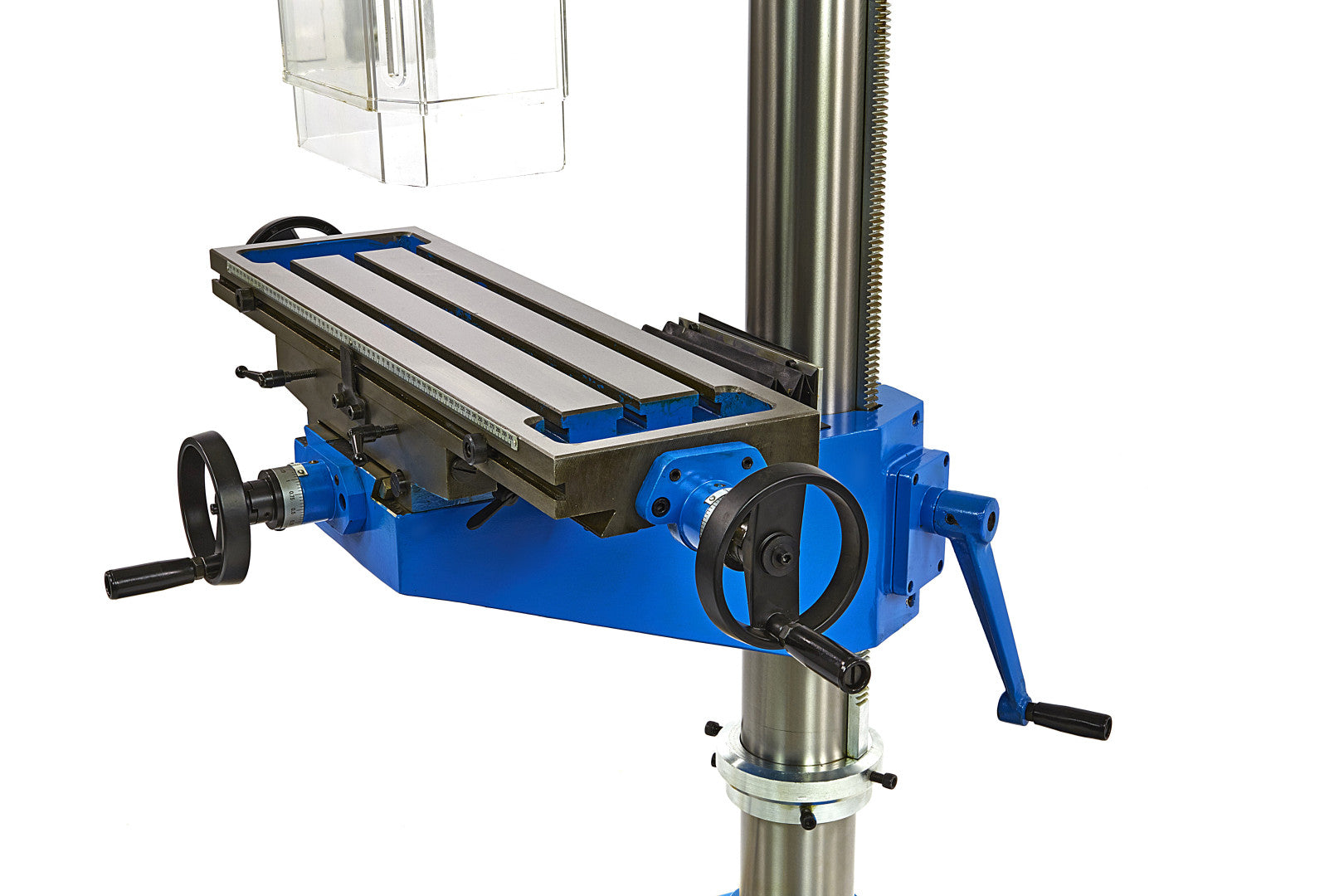

- dimensiuni masa: 210 x 700mm
- dimensiuni picior: 650 x 450mm
- miscare deplasare: 190mm
- deplasare inaltime: 490mm
- diametru santuri tip T: 14mm
- dimensiune piulita tip T: M12
- distanta maxima de la ax la masa: 610mm
- distanta maxima de la ax la picior: 1180mm
- dimensiuni plasare: 82 x 72 x 193cm
- dimensiuni ambalaj: 82 x 72 x 193cm
- greutate: 350kg
Acest model de masina de frezat vine standard cu
- mandrina cu bolt MC-4 B 18
- schimbare stanga/dreapta
- protectie ax
- ajustare buna
- freza filetare
- motor cu 2 viteze
- freza cu cap rotunjire
- reducere impuls MC 4 – MC 3
- unelte auxiliare
Nr referinta: 00214
GBH00214
